Faster-RCNN

经典中的经典 Faster-RCNN

---

论文链接：https://arxiv.org/abs/1506.01497

如出现图像显示不完整，或者公式显示不完整，可访问如下博客

CSDN博客地址：https://blog.csdn.net/chunfengyanyulove/article/details/80037396

---

创新点

• 目前object detection的成功主要在于region proposal方法以及region-based CNN网络方法。
• region proposal耗时成为object detection的瓶颈。
• 作者设计提出RPN网络，替代region proposal方法的同时，实现end-to-end网络。
• rpn网络利用特征图实现region proposal，使得时间降低到10ms/张。
• rpn利用“anchor”实现多尺度，多方向的变换。（论文中同时介绍了其他的方法，比如图像金字塔，但是感觉还是anchor比较实用）
• 为了保证rpn与fast rcnn的一致，作者提出了一种交替训练的方法。

Faster R-CNN详解

Faster RCNN整体结构采用Fast R-CNN，另外利用设计的RPN网络替代Selective Search方法实现region的生成，如下图所示：

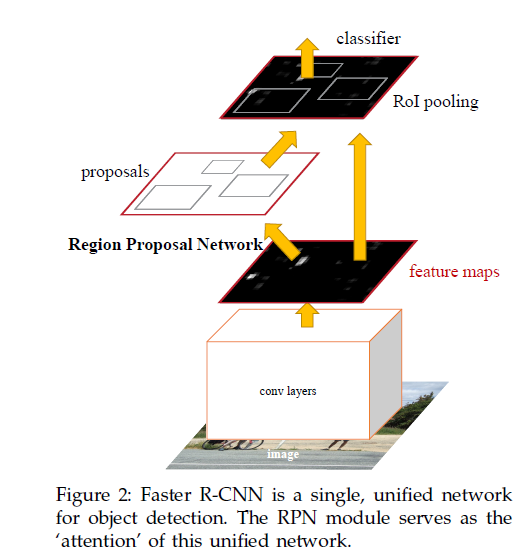

图：faster r-cnn示意图

RPN 网络

RPN网络的输入为任意尺寸的图像，输出为一系列的矩形框以及是否为object的得分。

RPN网络采用n*n（默认n取3）的滑动窗口，首先通过卷积进行降维（实验默认是ZF-256维,VGG-512维），然后分别连接两个全连接层reg以及cls，实现回归与分类。

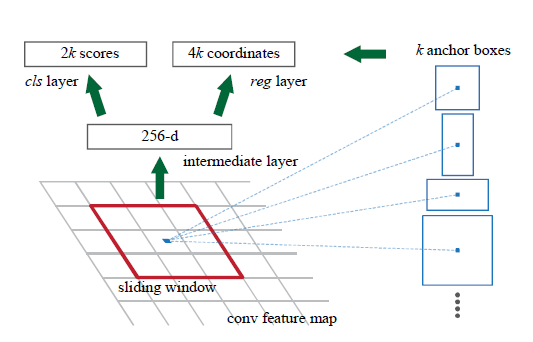

rpn结构示意图 ##### anchor

• 对于每个滑动窗口，rpn网络预测k个region proposal区域，这样reg网络便产生4k个输出代表着坐标，cls产生2k个输出，代表在是否为object
• k个不同大小的rp区域作者称之为anchor，faster r-cnn默认提取9个anchor，分别对应3个尺寸（作者默认为128，256，512），3个长宽比（作者默认为：1：1，1：2，2：1），如下是对应图像宽度缩放到600采用ZF网络时候对应的anchor的尺寸。

• 平移不变性。

• 相比较与multibox，采用本文方法的参数量大幅降低。

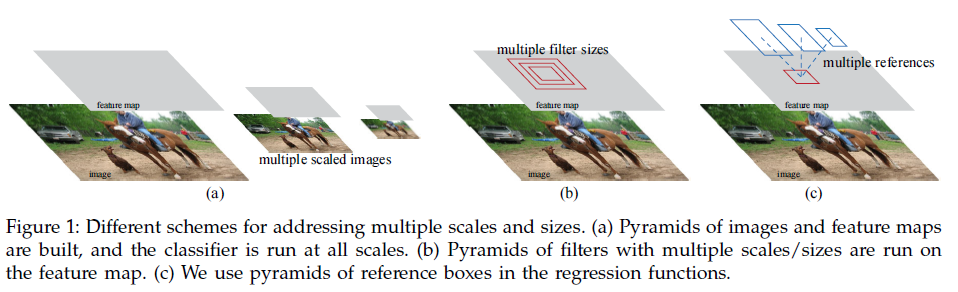

• multi-scale anchor，常用的多尺度方法如下，（a）为图像金字塔比较耗时，（b）为多尺度滤波器，本文选择方法（c）。



loss function

anchor 正负样本的分配：

• 与IOU重合度最大的标记被正样本
• 与IOU重合度大于70%的标记为正样本
• 与IOU重合度小于30%的标记为负样本。

loss function定于如下：

$L(p_i,t_i)=\frac{1}{N_{cls}}\sum_{i}L_{cls}(p_i,p_i^*)+\lambda\sum_ip_i^*L_{reg}(t_i,t_i^*)$

这里，$p_i$代表预测anchor为object的概率，如果anchor为正样本，$p_i^*$为1否则为0。

$t_i$为bounding box的4个坐标，$p_i^*L_{reg}$代表，当anchor为正时计算reg坐标回归，否则不计算坐标回归。

$L_{cls}$为log 损失
$L_{reg}$为smooth L1损失

bounding box regression 的参数坐标定义为：

$t_x = (x-x_a)/w_a,t_y=(y-y_a)/h_a$

$t_w=log(w/w_a),t_h=log(h/h_a)$

$t_x^* = (x^*-x_a)/w_a,t_y^*=(y^*-y_a)/h_a$

$t_w^*=log(w^*/w_a),t_h^*=log(h^*/h_a)$

rpn的训练

RPN训练的时候，每个mini-batch便是一张图片。由于正负样本较多，训练时,每张图像随机采样256个anchor,正负样本的比例是1:1，如果正样本较少，用负样本补充。

Faster R-CNN的训练

对于Faster R-CNN的训练，本文作者采用了4步交替训练方法，以达到fast r-cnn与rpn网络的统一性。

1、利用ImageNet预训练模型进行训练RPN。
2、利用第一步的RPN，训练Fast R-CNN。
3、保持Fast R-CNN前面网络不变，训练RPN，使得Fast R-CNN与RPN共享卷积。
4、保持共享卷积不变，，训练Fast R-CNN后面的网络。

---

下面拿代码来说话：

generate anchors代码

import numpy as np
def generate_anchors(base_size=16, ratios=[0.5, 1, 2],
                     scales=2**np.arange(3, 6)):
    """
    Generate anchor (reference) windows by enumerating aspect ratios X
    scales wrt a reference (0, 0, 15, 15) window.
    """
    # 这里选取16的原因在于，原始图像224x224,conv5卷积层输出feature maps大小为14x14,是16的缩放关系。对于
    # feature maps上的每个点，在width方向最大偏移为14,同理在height上也是14.
    # 在图像左上角生成一个anchors,剩下的anchors在此基础上做偏移即可得到。
    # scales=[8, 16, 32],
    #详细说明，基准坐标[0,0,15,15]利用ratios可以生成3个anchor分别为[0,0,16,16][-4,2,19,14][2.5,-3,13.5,19]
    #然后再乘以变换比例得到9个anchor[128..,256..,512..]
    base_anchor = np.array([1, 1, base_size, base_size]) - 1
    ratio_anchors = _ratio_enum(base_anchor, ratios)
    anchors = np.vstack([_scale_enum(ratio_anchors[i, :], scales)
                         for i in xrange(ratio_anchors.shape[0])])
    return anchors

def _whctrs(anchor):
    """
    Return width, height, x center, and y center for an anchor (window).
    """

    w = anchor[2] - anchor[0] + 1
    h = anchor[3] - anchor[1] + 1
    x_ctr = anchor[0] + 0.5 * (w - 1)
    y_ctr = anchor[1] + 0.5 * (h - 1)
    return w, h, x_ctr, y_ctr

def _mkanchors(ws, hs, x_ctr, y_ctr):
    """
    Given a vector of widths (ws) and heights (hs) around a center
    (x_ctr, y_ctr), output a set of anchors (windows).
    """
    # 对于给定anchor中心坐标和长宽，生成三个anchors,分别时1:0.5, 1:1, 1:2
    ws = ws[:, np.newaxis]
    hs = hs[:, np.newaxis]
    anchors = np.hstack((x_ctr - 0.5 * (ws - 1),
                         y_ctr - 0.5 * (hs - 1),
                         x_ctr + 0.5 * (ws - 1),
                         y_ctr + 0.5 * (hs - 1)))
    return anchors

def _ratio_enum(anchor, ratios):
    """
    Enumerate a set of anchors for each aspect ratio wrt an anchor.
    """

    w, h, x_ctr, y_ctr = _whctrs(anchor)  #返回anchor的中心以及长宽
    size = w * h
    size_ratios = size / ratios  #尺寸 [128,256,512]
    ws = np.round(np.sqrt(size_ratios))
    hs = np.round(ws * ratios)
    anchors = _mkanchors(ws, hs, x_ctr, y_ctr) #得到[0,0,16,16] [-3.5,2,18.5,13][2.5,-3,12.5,18]
    return anchors

def _scale_enum(anchor, scales):
    """
    Enumerate a set of anchors for each scale wrt an anchor.
    """
    # 对于每一个scale,生成三个anchors，总共可以生成9个anchors
    w, h, x_ctr, y_ctr = _whctrs(anchor)
    ws = w * scales
    hs = h * scales
    anchors = _mkanchors(ws, hs, x_ctr, y_ctr)
    return anchors

anchor_target代码

bottom值得注意的是rpn_cls_score,开始我以为会用到，在阅读代码之后，可以知道它的作用仅仅是为得到feature maps的width,height,用作anchors的生成。在获取anchors之后，
可以利用其计算与gt_boxes的overlap值，以此来获得目标还是背景的标签。(ps;这里贴代码时候需要四个空格才给算，也是醉了)上源码：　　

class AnchorTargetLayer(caffe.Layer):

def setup(self, bottom, top):
    layer_params = yaml.load(self.param_str_)
    anchor_scales = layer_params.get('scales', (8, 16, 32))
    # generate 1:0.5, 1:1, 1:2 anchors,利用上述生成anchors方法。
    self._anchors = generate_anchors(scales=np.array(anchor_scales))
    self._num_anchors = self._anchors.shape[0]
    self._feat_stride = layer_params['feat_stride']

    if DEBUG:
        print 'anchors:'
        print self._anchors
        print 'anchor shapes:'
        print np.hstack((
            self._anchors[:, 2::4] - self._anchors[:, 0::4],
            self._anchors[:, 3::4] - self._anchors[:, 1::4],
        ))
        self._counts = cfg.EPS
        self._sums = np.zeros((1, 4))
        self._squared_sums = np.zeros((1, 4))
        self._fg_sum = 0
        self._bg_sum = 0
        self._count = 0

    # allow boxes to sit over the edge by a small amount
    self._allowed_border = layer_params.get('allowed_border', 0)

    height, width = bottom[0].data.shape[-2:]
    if DEBUG:
        print 'AnchorTargetLayer: height', height, 'width', width

    A = self._num_anchors
    # labels
    top[0].reshape(1, 1, A * height, width)
    # bbox_targets
    top[1].reshape(1, A * 4, height, width)
    # bbox_inside_weights
    top[2].reshape(1, A * 4, height, width)
    # bbox_outside_weights
    top[3].reshape(1, A * 4, height, width)

def forward(self, bottom, top):
    # Algorithm:
    #
    # for each (H, W) location i
    #   generate 9 anchor boxes centered on cell i
    #   apply predicted bbox deltas at cell i to each of the 9 anchors
    # filter out-of-image anchors
    # measure GT overlap

    assert bottom[0].data.shape[0] == 1, \
        'Only single item batches are supported'

    # map of shape (..., H, W)
    # 利用rpn_cls_score来获得feature_maps的长宽
    height, width = bottom[0].data.shape[-2:]
    # GT boxes (x1, y1, x2, y2, label)
    gt_boxes = bottom[1].data
    # im_info
    im_info = bottom[2].data[0, :]

    if DEBUG:
        print ''
        print 'im_size: ({}, {})'.format(im_info[0], im_info[1])
        print 'scale: {}'.format(im_info[2])
        print 'height, width: ({}, {})'.format(height, width)
        print 'rpn: gt_boxes.shape', gt_boxes.shape
        print 'rpn: gt_boxes', gt_boxes

    # 1. Generate proposals from bbox deltas and shifted anchors
    # 利用获得每个anchor相对于图片左上角的anchor的移动步长。
    shift_x = np.arange(0, width) * self._feat_stride
    shift_y = np.arange(0, height) * self._feat_stride
    shift_x, shift_y = np.meshgrid(shift_x, shift_y)
    shifts = np.vstack((shift_x.ravel(), shift_y.ravel(),
                        shift_x.ravel(), shift_y.ravel())).transpose()
    # add A anchors (1, A, 4) to
    # cell K shifts (K, 1, 4) to get
    # shift anchors (K, A, 4)
    # reshape to (K*A, 4) shifted anchors
    #简单说就是对9个anchor,每一个都加上一个位移，得到9*K个位移
    A = self._num_anchors
    K = shifts.shape[0]
    # each anchor add with all shifts to get all anchors
    all_anchors = (self._anchors.reshape((1, A, 4)) +
                   shifts.reshape((1, K, 4)).transpose((1, 0, 2)))
    all_anchors = all_anchors.reshape((K * A, 4))
    total_anchors = int(K * A)

    # only keep anchors inside the image
    # 丢弃所有超过边界的anchors,即使是一点点。
    inds_inside = np.where(
        (all_anchors[:, 0] >= -self._allowed_border) &
        (all_anchors[:, 1] >= -self._allowed_border) &
        (all_anchors[:, 2] < im_info[1] + self._allowed_border) &  # width
        (all_anchors[:, 3] < im_info[0] + self._allowed_border)    # height
    )[0]

    if DEBUG:
        print 'total_anchors', total_anchors
        print 'inds_inside', len(inds_inside)

    # keep only inside anchors
    anchors = all_anchors[inds_inside, :]
    if DEBUG:
        print 'anchors.shape', anchors.shape

    # label: 1 is positive, 0 is negative, -1 is dont care
    labels = np.empty((len(inds_inside), ), dtype=np.float32)
    labels.fill(-1)

    # overlaps between the anchors and the gt boxes(x1, y1, x2, y2, cls)
    # overlaps (ex, gt)
    # 这里overlaps是计算所有anchor与ground-truth的重合度，它是一个len(anchors) x len(gt_boxes)的二维数组，每个元素是各个
    # anchor和gt_boxes的overlap值，这个overlap值的计算是这样的：
    # overlap = (重合部分面积) / (anchor面积 + gt_boxes面积 - 重合部分面积)
    # argmax_overlaps是每个anchor对应最大overlap的gt_boxes的下标
    # max_overlaps是每个anchor对应最大的overlap值相对应的
    # gt_argmax_overlaps是每个gt_boxes对应最大overlap的anchor的下标
    # gt_max_overlaps是每个gt_boxes对应最大的overlap值
    # 计算anchors与gt_boxes的overlap
    overlaps = bbox_overlaps(
        np.ascontiguousarray(anchors, dtype=np.float),
        np.ascontiguousarray(gt_boxes, dtype=np.float))
    # 获取每行最大overlap
    argmax_overlaps = overlaps.argmax(axis=1)
    max_overlaps = overlaps[np.arange(len(inds_inside)), argmax_overlaps]
    gt_argmax_overlaps = overlaps.argmax(axis=0)
    # 获取每列最大的overlap, 目的是找到与roi重叠最大的区域，将其标记为1
    gt_max_overlaps = overlaps[gt_argmax_overlaps,
                               np.arange(overlaps.shape[1])]
    gt_argmax_overlaps = np.where(overlaps == gt_max_overlaps)[0]

    if not cfg.TRAIN.RPN_CLOBBER_POSITIVES:
        # assign bg labels first so that positive labels can clobber them
        labels[max_overlaps < cfg.TRAIN.RPN_NEGATIVE_OVERLAP] = 0

    # fg label: for each gt, anchor with highest overlap
    # 无论如何，最大的overlap对应的是目标
    labels[gt_argmax_overlaps] = 1

    # fg label: above threshold IOU
    labels[max_overlaps >= cfg.TRAIN.RPN_POSITIVE_OVERLAP] = 1

    if cfg.TRAIN.RPN_CLOBBER_POSITIVES:
        # assign bg labels last so that negative labels can clobber positives
        labels[max_overlaps < cfg.TRAIN.RPN_NEGATIVE_OVERLAP] = 0

    # subsample positive labels if we have too many
    # 如果正标签过多，则进行下采样，提取部分正标签
    num_fg = int(cfg.TRAIN.RPN_FG_FRACTION * cfg.TRAIN.RPN_BATCHSIZE)
    fg_inds = np.where(labels == 1)[0]
    if len(fg_inds) > num_fg:
        disable_inds = npr.choice( #随机选择标签为正的标记为-1
            fg_inds, size=(len(fg_inds) - num_fg), replace=False)
        labels[disable_inds] = -1

    # subsample negative labels if we have too many
    # 如果负标签过多，则进行下采样，提取部分负标签
    num_bg = cfg.TRAIN.RPN_BATCHSIZE - np.sum(labels == 1)
    bg_inds = np.where(labels == 0)[0]
    if len(bg_inds) > num_bg:
        disable_inds = npr.choice(
            bg_inds, size=(len(bg_inds) - num_bg), replace=False)
        labels[disable_inds] = -1
        #print "was %s inds, disabling %s, now %s inds" % (
            #len(bg_inds), len(disable_inds), np.sum(labels == 0))
    #这里将计算每一个anchor与重合度最高的ground_truth的偏移值
    bbox_targets = np.zeros((len(inds_inside), 4), dtype=np.float32)
    # transform anchors 's coordinate to [0, 1]
    # 求bbox的回归目标
    bbox_targets = _compute_targets(anchors, gt_boxes[argmax_overlaps, :])
    # inside and outside means that anchors in geboxes or out of gtboxes.
    bbox_inside_weights = np.zeros((len(inds_inside), 4), dtype=np.float32)
    bbox_inside_weights[labels == 1, :] = np.array(cfg.TRAIN.RPN_BBOX_INSIDE_WEIGHTS)

    bbox_outside_weights = np.zeros((len(inds_inside), 4), dtype=np.float32)
    if cfg.TRAIN.RPN_POSITIVE_WEIGHT < 0:
        # uniform weighting of examples (given non-uniform sampling)
        num_examples = np.sum(labels >= 0)
        positive_weights = np.ones((1, 4)) * 1.0 / num_examples
        negative_weights = np.ones((1, 4)) * 1.0 / num_examples
    else:
        assert ((cfg.TRAIN.RPN_POSITIVE_WEIGHT > 0) &
                (cfg.TRAIN.RPN_POSITIVE_WEIGHT < 1))
        positive_weights = (cfg.TRAIN.RPN_POSITIVE_WEIGHT /
                            np.sum(labels == 1))
        negative_weights = ((1.0 - cfg.TRAIN.RPN_POSITIVE_WEIGHT) /
                            np.sum(labels == 0))
    bbox_outside_weights[labels == 1, :] = positive_weights
    bbox_outside_weights[labels == 0, :] = negative_weights

    if DEBUG:
        self._sums += bbox_targets[labels == 1, :].sum(axis=0)
        self._squared_sums += (bbox_targets[labels == 1, :] ** 2).sum(axis=0)
        self._counts += np.sum(labels == 1)
        means = self._sums / self._counts
        stds = np.sqrt(self._squared_sums / self._counts - means ** 2)
        print 'means:'
        print means
        print 'stdevs:'
        print stds

    # map up to original set of anchors
    labels = _unmap(labels, total_anchors, inds_inside, fill=-1)
    bbox_targets = _unmap(bbox_targets, total_anchors, inds_inside, fill=0)
    bbox_inside_weights = _unmap(bbox_inside_weights, total_anchors, inds_inside, fill=0)
    bbox_outside_weights = _unmap(bbox_outside_weights, total_anchors, inds_inside, fill=0)

    if DEBUG:
        print 'rpn: max max_overlap', np.max(max_overlaps)
        print 'rpn: num_positive', np.sum(labels == 1)
        print 'rpn: num_negative', np.sum(labels == 0)
        self._fg_sum += np.sum(labels == 1)
        self._bg_sum += np.sum(labels == 0)
        self._count += 1
        print 'rpn: num_positive avg', self._fg_sum / self._count
        print 'rpn: num_negative avg', self._bg_sum / self._count

    # labels for each anchors, so shape is (1, 1, A * height, width)
    labels = labels.reshape((1, height, width, A)).transpose(0, 3, 1, 2)
    labels = labels.reshape((1, 1, A * height, width))
    top[0].reshape(*labels.shape)
    top[0].data[...] = labels

    # bbox_targets
    bbox_targets = bbox_targets \
        .reshape((1, height, width, A * 4)).transpose(0, 3, 1, 2)
    top[1].reshape(*bbox_targets.shape)
    top[1].data[...] = bbox_targets

    # bbox_inside_weights
    bbox_inside_weights = bbox_inside_weights \
        .reshape((1, height, width, A * 4)).transpose(0, 3, 1, 2)
    assert bbox_inside_weights.shape[2] == height
    assert bbox_inside_weights.shape[3] == width
    top[2].reshape(*bbox_inside_weights.shape)
    top[2].data[...] = bbox_inside_weights

    # bbox_outside_weights
    bbox_outside_weights = bbox_outside_weights \
        .reshape((1, height, width, A * 4)).transpose(0, 3, 1, 2)
    assert bbox_outside_weights.shape[2] == height
    assert bbox_outside_weights.shape[3] == width
    top[3].reshape(*bbox_outside_weights.shape)
    top[3].data[...] = bbox_outside_weights

def backward(self, top, propagate_down, bottom):
    """This layer does not propagate gradients."""
    pass

def reshape(self, bottom, top):
    pass
